Want to know more about aquatic feed/Fish feed production business?

1. Description:
Fish feed machine can be used to producing floating fish feed and sinking fish feed. The floating fish feed pellet machine can make kinds of feed, such as food fish, catfish, shrimps, crab, etc. the fish pellet made by the machine can float on water more than 24 hours. Gelatinization degree can reach 90%, enhance the output of fodders, it is suitable for making floating feed, pet food, fish fodder. The diameter of particle is Φ0.6-16mm. Promising fodder output evenly and continuously.

2. Raw materials: adopts  corn flour, soya meal, fish meal etc. as raw materials

3. Products: This line can be used to produce fish pellets, the pellets size can be from 1.0mm to 9.0mm by adjusting the moulds from extruder; meanwhile it can produce dog food, cat food.

4. Capacity: 150kg/h, 240kg/h, 500kg/h, 1ton/h, 2ton/h

5. Flow chart:Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

7. Machines Materials: Stainless Steel #304, thickness:1.2mm；Main Motor: Siemens China brand ;Main Electric elements: Siemens or CHNT brand;Inverter: Delta brand

8. Technical Parameters

Model       Installed power     Real power            Output                         Dimension

PX65              81.5kw                53kw                100-150kg/h              21000x1200x2200mm

PX70              115kw                 76kw                200-240kg/h              23000x1500x2200mm

PX85              181kw                 117kw              400-500kg/h              28000x3500x4300mm

PX95              135kw                100kw               1000kg/h                   30000x3500x4300mm

PX115            165kw                115kw                2000kg/h                   30000x3500x4300mm

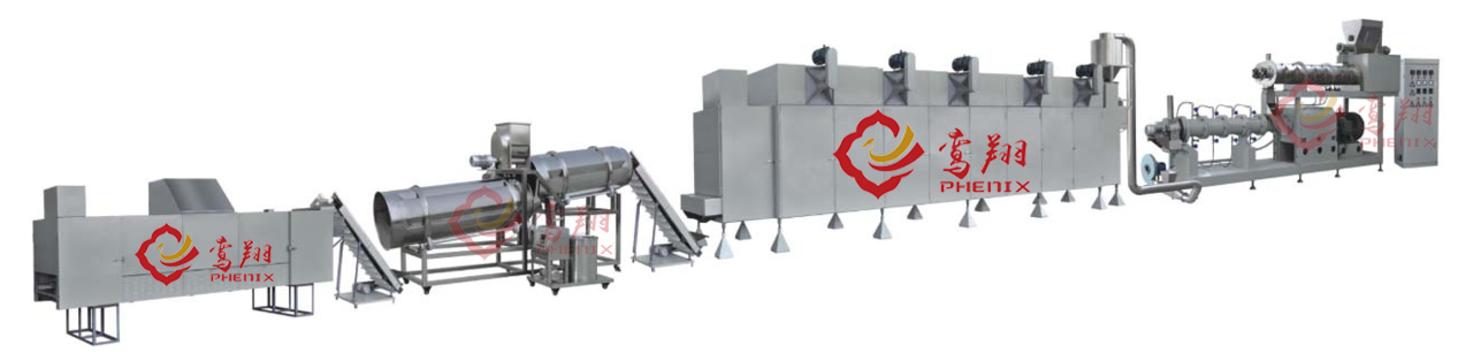

Aquatic Feed/Fish Feed Production Line
