​​1. Description:

Bugles are a corn chip snack food from extrusion. They come in the following flavors: Chile Cheese, Nacho Cheese, Original, Sour Cream & Onion, Salsa, Smokin' BBQ, Churros, Southwest Ranch, Sweet and Salty Chocolate Peanut Butter, Sweet and Salty Caramel, Hot Buffalo, and Hot & Spicy BBQ. The name comes from their shape.

2. Raw Materials: adopts wheat flour, corn flour, rice flour, vegetable oil, salt etc. as raw materials.

3. Products: This line can be used to produce Doritos chips, snacks, cereals by adjusting the moulds from extruder;

4. Capacity: 150kg/h, 240kg/h

5. Flow chart: Mixing system---Extrusion system---Shaping system---Frying system----Flavoring system---Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

7. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

8.Technical Parameters:
Model        Installed power        Real power          Output                        Dimension

PX65              119kw                       75kw             100-150kg/h           22000x1200x2500mm

PX70              120kw                      82kw              200-240kg/h           24000x1200x2500mm

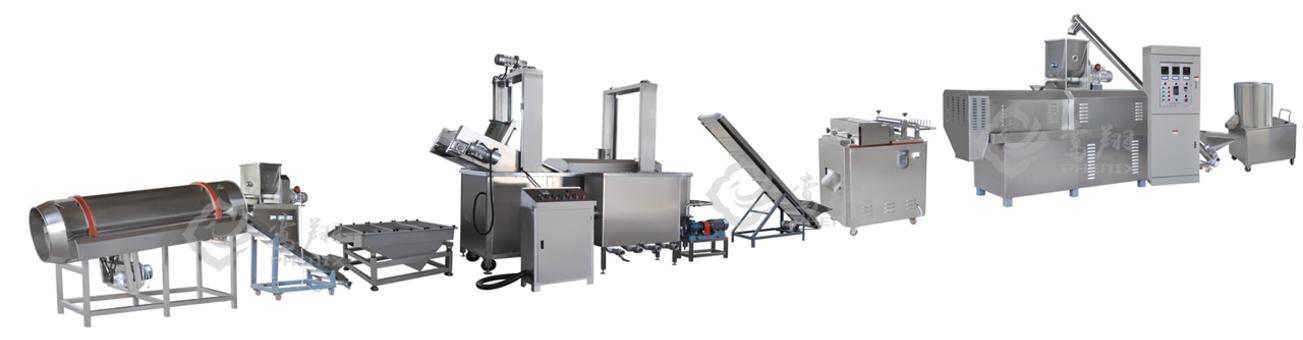

Tortilla Chips/Bugles Production Line
