​​​1. Description:
 Our unique and patented machine, Composed of peeling system, crushing system, and grading system.
Function
◆Peeling corn seed skin, remove corn germ, root and hilum.
◆ Crushing corn after peeling, polishing and sieve classifying into different sizes of grits, meal, flour.
Main features:
◆ Excellent peeling efficiency, removing corn skin, corn germ, root and black hilum,
this is to make sure that final output is in consistent color without any black dot.
◆You can adjust the Fineness wheel on the right of the machine to get 22 different sizes of
corn grits from half corn seeds to corn flour
◆ Multifunction to process corn, wheat, rice, beans, and other grain, except millet.
◆The machine is improved basd on previous series machines. It adopts dry peeling technology,
and you just need to peel one time before milling. The effect of final calssifying system is excellent.
The final outputs after packing can access to supermarket directly.

2. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

3. Technical Parameters

  Model              Capacity             Power           Peeling Rate                Dimension
PX-CG1          200-400kg/h        7.5KW                 98%                   1800x500x1100mm
PX-CG2          400-500kg/h        11KW                  98%                   2000x500x1100mm

​

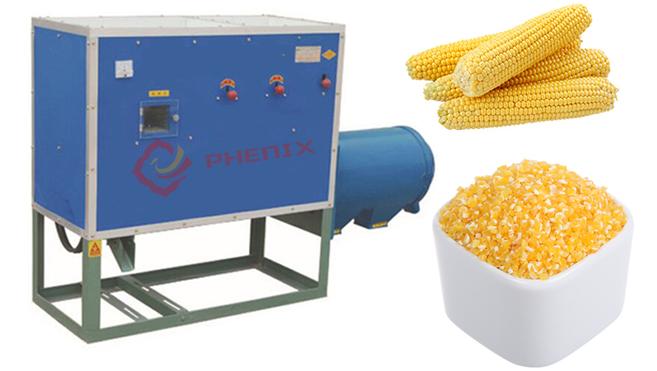

Corn peeling and grits machine
