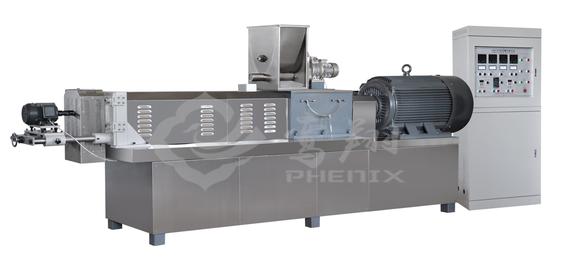

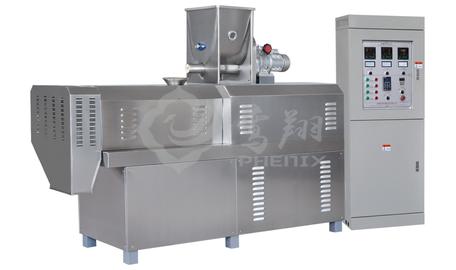

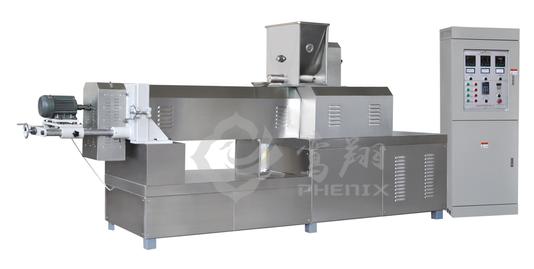

Electrical Twin Screw Extruder

1. Description:

 ◆The main extruder adopts frequency speed controlling with high automation and stable per-formation.

 ◆The screws are made of the alloy steel and special craft,durable usage,high pressure,the screw life is longer.Adopting the building block structure and combining willingly according to the different demand.

 ◆The forced lubrication system,so that it can guarantee the equipment transmission life is longer.

 ◆Auto-temperature control system, make the temperature controlling more direct viewing and the parameter more precise.

 ◆Self-cleaning ,when stopping ,it can be cleaned without desassembling.

 ◆According to different screw design rate to full different technology request.

Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
"Low cost, high profits" is the suitable generalization of Snack food business line, especially for puff snack food productioncan produce many kinds of snacks/puffedd snacks such as crispy rice flakes,core-filling snacks,cereal porridge,nutritional powder(instant porridge) etc.

2. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

3. Machines Materials:

Machine Material: Stainless Steel #304, thickness:1.2mm

Main Motor: Siemens China brand

Main Electric elements: Siemens or CHNT brand

Inverter: Delta brand

8. Technical Parameters

Model          Installed power         Real power         Output                      Dimension

PX65                81.5kw                     53kw             100-150kg/h            21000x1200x2200mm

PX70                 115kw                     76kw              200-240kg/h           23000x1500x2200mm

PX85                 181kw                     117kw            400-500kg/h           28000x3500x4300mm
