1. Description:

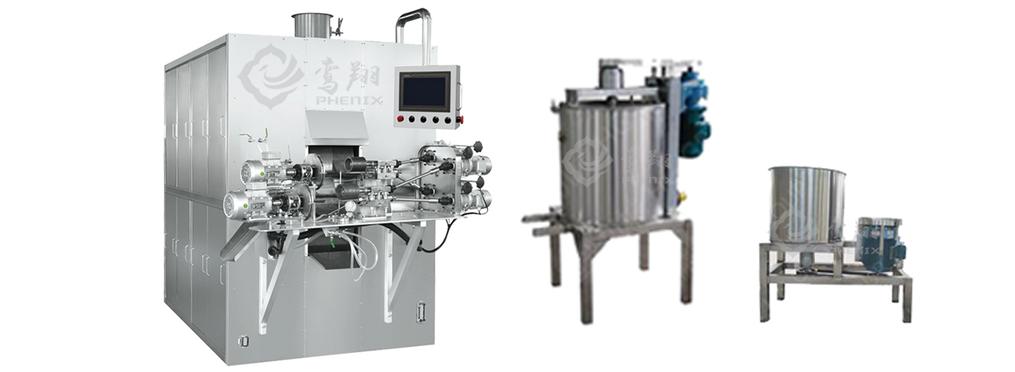

◆. Feeder and core machine
The two machines are integrated and have the advantages of uniform conveying flow and easy operation.
◆. Fabric beater
The impeller type stirring has the advantages of short stirring time and uniform slurry.
◆. Ball mill
After being ball milled, the core material has the advantages of good fluidity, smoothness, uniformity and good mouthfeel.

2. Raw materials: prapare oil,egg,wheat flour,azucar,water and other raw materail.

3. Capacity: 200-250pcs/min, 50-60kg/h, with corn fillings: 80-120kg/h

4. Flow chart: Mixer ---Abrasive machine (Note core use)---- Center-core injecting machine ---Oven baking and forming machine----Flattening converyor forming machine

5. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

7. Machines Materials:
Machine Material: Stainless Steel #304, thickness:1.2mm
Main Motor: Siemens China brand
Main Electric elements: Siemens or CHNT brand
Inverter: Delta brand

8. Technical Parameters
TECHNICAL DATA
Diameter of wheel: 2000mm,
Diameter of roll: 8-22mm
Total power: 10kw (gas heating line)
Consumption of gas: 4-6kg/h,
Consumption of electricity: 50kw
Equipment weight: 3.5ton
Working space needs: 30 square meter
Dimension of the machine: 2900*1900*2300mm
