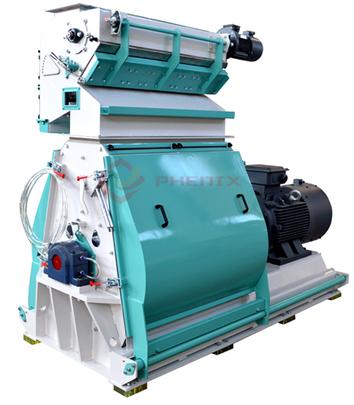

Hammer Miller

Want to know more about baby food production business?

​​​​​1. Description:
◆ The whole welding thickened base, the universal shock absorber is placed stably;
◆ quick-open moving door, double-layer sound insulation, easy to open, low noise;
◆ the overall rotor, high-precision dynamic balance, fixed hammer card slot, quick replacement of the hammer;
◆multi-angle alloy hammer, multi-point shear comminution, high output and durability;
◆ multi-cavity crushing bin, small size screen, high crushing efficiency, low mesh breakage rate;
◆ Combined quick-opening and pressing screen mechanism, independent of separate warehouse pressure and tight without leakage, easy to open;
◆ Rotor lifting device, it is simple and convenient to replace and maintain the bearing, saving labor and time;
◆ remove the iron and iron feeder, automatic impurity removal, high-strength magnetic iron removal, uniform feeding.
It is suitable for fine grinding in feed, grain and food industries
This machine can grind granular feed such as maize, sorghum, wheat and beans；Welding structure is adopted, the motor and rotor is installed in the same base；Direct driving is adopted, structure is compact and it is convenient and quick to replace the sieve plate；With safety interlock device at operation door, the vibration is small during running because the rotor has been dynamic balance tested；Different feeding type for choosing: self-cleaning impeller feeding or belt magnet removing feeding.

2. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

3. Technical Parameters
 Model                 PX-SP56X36              PX-SP56X40              PX-SP112X30               PX-SP112X40
Power                  18.5/22KW                   30/37KW                       55/75KW                        90/110KW
Capacity                 2.5~3T/h                    4~5T/h                           7.5~10.5T/h                  12.5~16T/h
