1. Description:

Pre-gelatinized starch/Modified starch making machine can produce Denatured Starch, Pre-gelatinized starch is an effective and economical fluid loss agent in water based drilling fluids, which is a starch derivative. It is not bacterial degradation when at 120℃, environmentally acceptable and non-toxic. Modified Starch can produce a thin, slick, tough filter cake and promotes faster penetration rates with reducer friction. It can be used in all kinds of drilling fluid system. Pre-gelatinized starch is also sometimes "pregelatinized" to make them easier to dissolve during product manufacture. Modified starch is widely used in oil drilling, textile, paper and food industries.

2 Raw Materials: corn starch, cassava starch, potato starch

3. Products: oil drilling starch, Pre-gelatinized starch

4. Capacity: 200kg/h, 350kg/h, 500kg/h, 1ton/h, 2ton/h

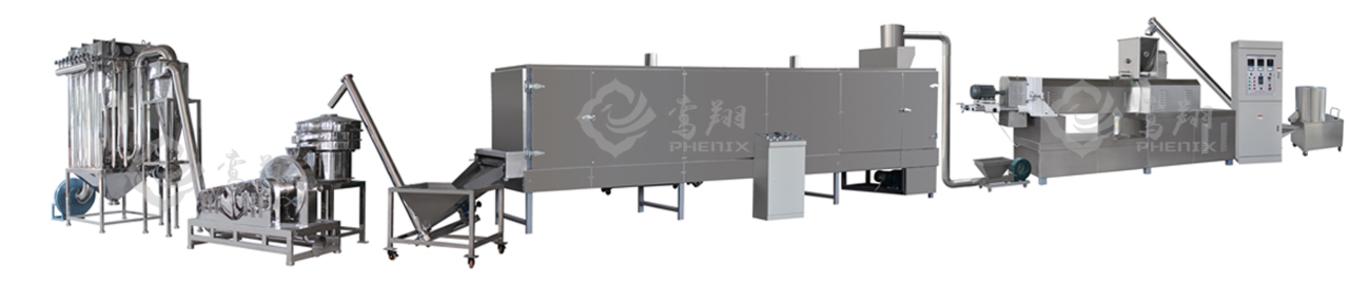

5. Flow chart: Mixing---Extrusion---Drying---Grinding---Blending—Packing

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

7. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

8. Technical Parameters:

Model        Installed power        Real power           Output                          Dimension

PX85               145kw                    100kw               300-400kg/h             20000x2000x3500mm
